Heavy-Duty Rubber Fabric Conveyor Belts for Industrial Excellence
RUBBER FABRIC CONVEYOR BELTS CHEVRON BELTS

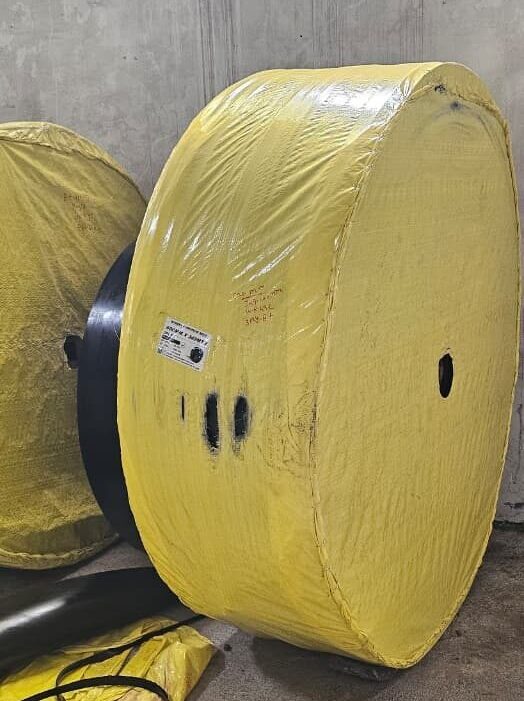

Buffer stocks are maintained in a huge amount to meet any kind of emergency requirements of our clients
Durable conveyor belts designed for efficient and reliable bulk material handling.
RUBBER FABRIC CONVEYOR BELTS CHEVRON BELTS
Buffer stocks are maintained in a huge amount to meet any kind of emergency requirements of our clients
Durable conveyor belts designed for efficient and reliable bulk material handling.
STONE CRUSHER
COAL, POWER, PORTS, STEEL, CEMENT INDUSTRY
Buffer stocks are maintained in a huge amount to meet any kind of emergency requirements of our clients
Durable conveyor belts designed for efficient and reliable bulk material handling.
SALIENT FEATURES - BELTING
- Excellent Flexibility
- Very low permanent elongation
- Excellent Trough ability
- Excellent Cover – to play adhesion
- Maximum Load Support
- Suitable for Mechanical fasteners
- Impact Resistance
- Suitable for all types of Cover
- Superior joint efficiency & increased
- Smooth & trouble free service
- Higher carrying capacity with low conveyor belt weight
- Universal applications
- Improved resistance to mechanical damages
- Hot & cold spice proven
- Resistance to environmental operating condition
SELECTION CHART FOR BELT STYLE AND COVER GRADES
| Belts Style N/mm | Number of Plies | Working Tension (max) | Nominal Carcass Thickness Mm | Nominal Carcass Weight Kg/m | Maximum Belt Width for satisfactory Load support (mm) for Material Bulk Density upto (t/m3) 1 1.6 2.5 | |||
| Vulcanized Splice N/mm | Mechanical Fastener N/mm | |||||||
| 200/2 | 2 | 25 | 20 | 2.3 | 2.6 | 650 | 500 | 400 |
| 250/2 | 2 | 25 | 20 | 2.5 | 2.8 | 650 | 600 | 450 |
| 315/2 | 2 | 32 | 25 | 2 | 3 | 800 | 650 | 500 |
| 315/3 | 3 | 32 | 25 | 3 | 3.3 | 1000 | 800 | 650 |
| 400/3 | 3 | 40 | 32 | 3.3 | 3.7 | 1050 | 900 | 650 |
| 500/3 | 3 | 50 | 40 | 3.6 | 4 | 1200 | 900 | 800 |
| 500/4 | 4 | 50 | 40 | 4 | 4.4 | 1200 | 1000 | 800 |
| 630/3 | 3 | 63 | 50 | 3.9 | 4.4 | 1200 | 1000 | 800 |
| 630/4 | 4 | 63 | 50 | 5 | 5.6 | 1400 | 1200 | 900 |
| 800/4 | 4 | 80 | 63 | 5.4 | 5.9 | 1600 | 1400 | 1000 |
| 800/5 | 5 | 80 | 63 | 6.4 | 7.2 | 1800 | 1400 | 1200 |
| 1000/4 | 4 | 100 | 80 | 6.1 | 6.7 | 1800 | 1400 | 1200 |
| 1000/5 | 5 | 100 | 80 | 6.9 | 7.8 | 1800 | 1600 | 1400 |
| 1250/4 | 4 | 125 | 7 | 7.8 | 1800 | 1600 | 1400 | |
| 1250/5 | 5 | 125 | 7.8 | 8.8 | 1800 | 1600 | 1600 | |
| 1400/4 | 4 | 155 | 7.7 | 8.6 | 1800 | 1800 | 1600 | |
| 1400/5 | 5 | 155 | 8.9 | 10.1 | 2000 | 1800 | 1800 | |
| 1600/4 | 4 | 160 | 9.1 | 10.5 | 2000 | 1800 | 1800 | |
| 1600/5 | 5 | 160 | 9.8 | 11.1 | 2000 | 1800 | 1800 | |
| 2000/4 | 4 | 200 | 11.4 | 13.2 | 2000 | 1800 | 1800 | |
| 2000/5 | 5 | 200 | 11.4 | 13.2 | 2000 | 1800 | 1800 | |
| 2000/6 | 6 | 200 | 12.0 | 13.8 | 2000 | 1800 | 1800 | |
RECOMMENDED MINIMUM PULLEY DIAMETERS (MM.)
Belts Style | Over 60% up to 100% | Over 30% up to 60% | Up to 30% | ||||||
A | B | C | A | B | C | A | B | C | |
200/2 | 250 | 200 | 160 | 200 | 160 | 125 | 160 | 160 | 125 |
250/2 | 250 | 200 | 160 | 200 | 160 | 125 | 160 | 160 | 125 |
315/3 | 250 | 200 | 160 | 200 | 160 | 125 | 160 | 160 | 125 |
400/3 | 315 | 250 | 200 | 250 | 200 | 160 | 200 | 200 | 160 |
500/3 | 400 | 315 | 250 | 315 | 250 | 200 | 250 | 250 | 200 |
500/4 | 500 | 400 | 315 | 400 | 315 | 250 | 315 | 315 | 250 |
630/3 | 500 | 400 | 315 | 400 | 315 | 250 | 315 | 315 | 250 |
630/4 | 500 | 400 | 315 | 400 | 315 | 250 | 315 | 315 | 250 |
800/4 | 630 | 500 | 400 | 500 | 400 | 315 | 400 | 400 | 315 |
800/5 | 630 | 500 | 400 | 500 | 400 | 315 | 400 | 400 | 315 |
1000/4 | 800 | 630 | 500 | 630 | 500 | 400 | 500 | 500 | 400 |
1000/5 | 800 | 630 | 500 | 630 | 500 | 400 | 500 | 500 | 400 |
1250/4 | 800 | 630 | 500 | 630 | 500 | 400 | 500 | 500 | 400 |
1250/5 | 1000 | 800 | 630 | 800 | 630 | 500 | 630 | 630 | 500 |
1400/4 | 1000 | 800 | 630 | 800 | 630 | 500 | 630 | 630 | 500 |
1400/5 | 1000 | 800 | 630 | 800 | 630 | 500 | 630 | 630 | 500 |
1600/4 | 1250 | 1000 | 800 | 1000 | 800 | 630 | 800 | 800 | 630 |
1600/5 | 1250 | 1000 | 800 | 1000 | 800 | 630 | 800 | 800 | 630 |
2000/4 | 1250 | 1000 | 800 | 1000 | 800 | 630 | 800 | 800 | 630 |
2000/5 | 1600 | 1250 | 1000 | 1250 | 1000 | 800 | 1000 | 1000 | 800 |
2000/6 | 2000 | 1600 | 1250 | 1600 | 1250 | 1000 | 1250 | 1250 | 1000 |

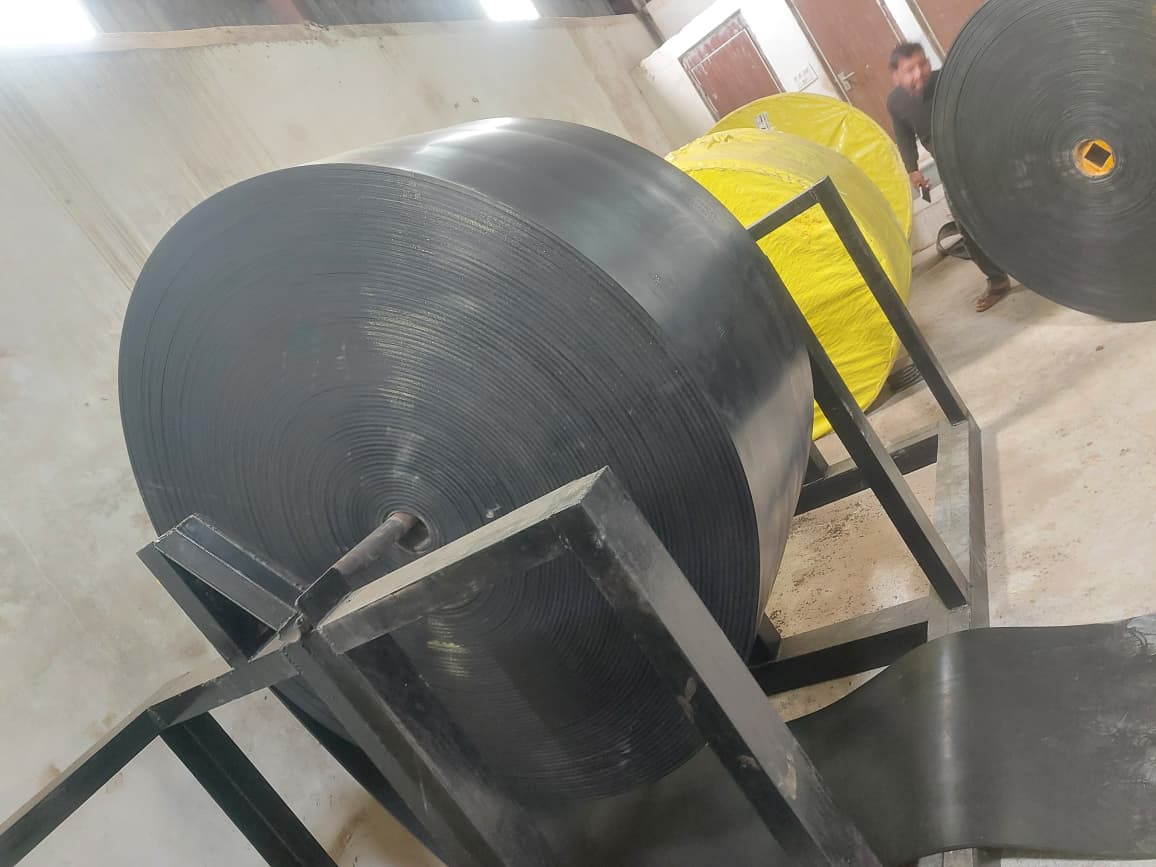

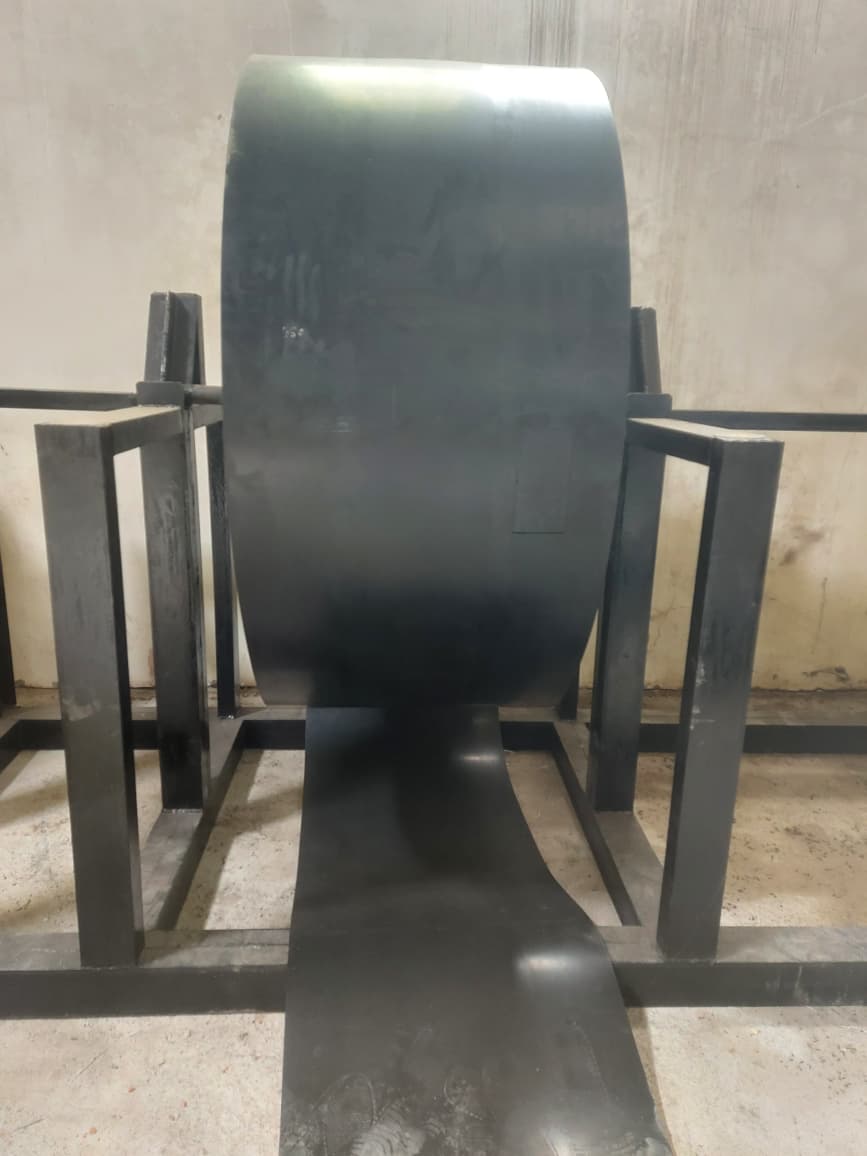

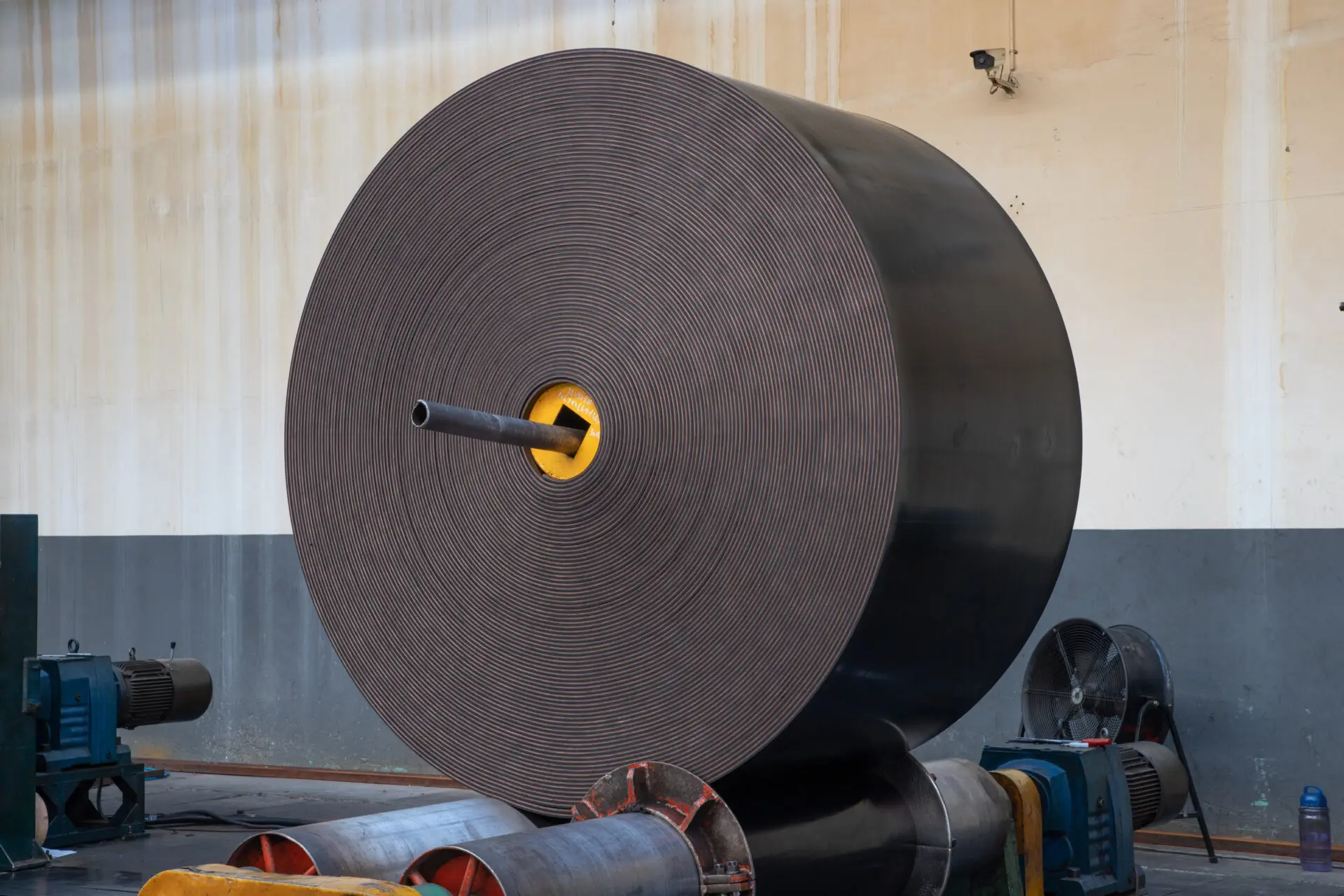

RUBBER - FABRIC CONVEYOR BELTS
The rubber-fabric reinforced conveyor belt are generally used to convey sharp and highly abrasive materials. These belts are suitable for transportation of ferrous and non- ferrous ores, lumps of firm’s rocks up to upto 500mm in size, limestone dolomite, coke, agglomerate, run coal, construction materials, packed farinaceous food etc.
Our company Manufactures rubber-fabric conveyor belts of the following types:
General purpose belts – For transportation of ferrous ores, lumps of firm rocks, limestone dolomite, agglomerate and other high-abrasive and abrasive materials at temperature from -45C + 60C
Standard Belt Width – 300mm to 2400mm
DEPENDING ON RATED TENSILE STRENGTH OF I FABRIC PLY, TOTAL RATED TENSILE STRENGTH OF BELTS COMES TO :
Cover Type |
Standard | Minimum Tensile Strength (Mpa) | Minimum Elongation (%) | Abrasion mm3 Loss |
Material Conveyed |
M-24 or | IS-1891(M-24 Grade) | 24 | 450 | 150 | Iron Ore, Coal, |
Equivalent | AS-1332(M Grade) | 24 | 450 | 125 | Lignite, Copper Ore, |
| DIN-22102(X Grade) | 25 | 450 | 120 | Limestone, |
| BS-490(M-24Grade) | 24 | 450 | 150 | Blast Furnace, |
| ISO-10247 (L Grade) | 24 | 450 | 120 | Slag, Stone, Rock etc |
| IS-1891(N-17 Grade) | 17 | 400 | 200 | Sand, Cement, |
N-17 or | AS-1332(N Grade) | 17 | 400 | 200 | Slaked Lime, |
Equivalent | DIN-22102(Y Grade) | 17 | 400 | 150 | Wood Chips, |
| BS-490(N-17 Grade | 17 | 400 | 150 | Pulp (Dry) |
|
|
|
|
|
|
SAR | DIN-22102(WGrade) | 18 | 400 | 90 | Lime Stone, |
Grade | AS-1332(A Grade) | 17 | 400 | 70 | Metal Ore, Stag, |
|
|
|
|
| Iron, Glass etc |
